Objednávacie číslo 571747

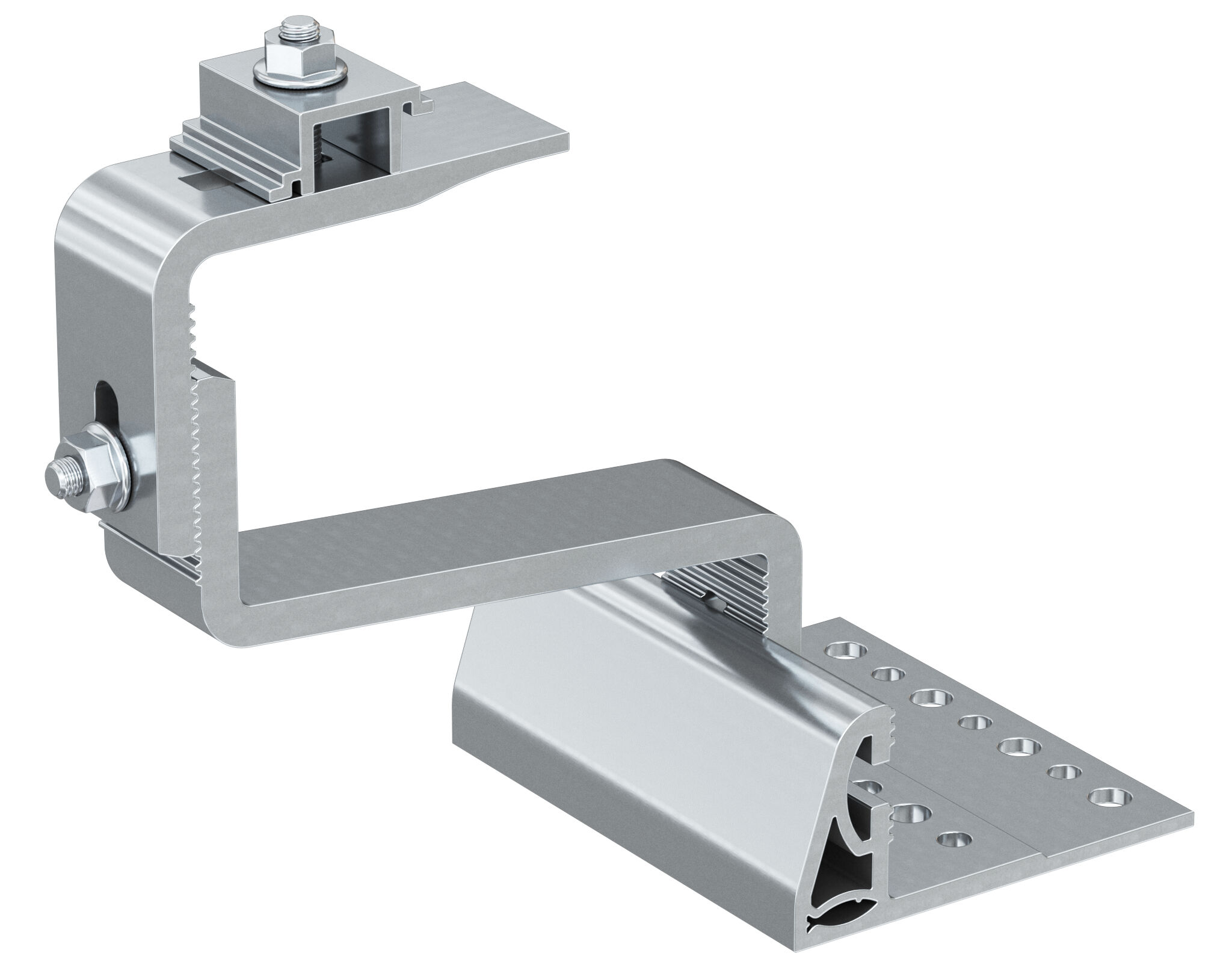

fischer hook for pitched roof with tiles covering and 4 adjustment positions RH 52-67 HB AL Aluminium
Top Features
- The hook offers four adjustment elements: the horizontal one on the base allows to offset the fixing point from the roof, the lower one matches different tile thicknesses plus ventilation strip, the middle-vertical one allows to adjust the profile/tile top distance, the top one allow to horizontally align the rail.
- Suitable for tiles with a ventilation layer for a total thickness from 40 to 67 mm.
- The quick-coupling hook/rail joint doesn't require additional screws.
- The wide base is suitable for supports that can be used for fixing only in some points.
- Various holes increase the choice in the fixing arrangement.
- The great load-bearing capacity allows the use of fewer hooks.
