The powerful universal mortar for concrete and masonry.

Injection mortar FIS V Plus

The fischer high-performance mortar FIS V Plus is the universal all-rounder for the highest requirements. The styrene-free vinyl ester hybrid mortar with its numerous fixing elements is approved for fixations in cracked and non-cracked concrete as well as in masonry. However, the injection mortar is also used with the approved system components for rebar connections, the fischer remedial wall tie VBS 8, the fischer weather facing wall tie FWS II, and the stand-off installation system TherMax. The variant FIS VS Plus Low Speed enables an extended processing time at higher processing temperatures or a greater drill hole depth. The shorter hardening time of the variant FIS VW Plus High Speed enables swift work progress even at low temperatures.

Produkt varijante

Download of image data

Produkt varijante

Atesti / izvješća testova

3 produkt varijanti

Language on label

Scale unit

Contents

Amount

GTIN (EAN-Code)

Legenda = Posjeduje atest— = Ne posjeduje atest

Pregledano 3 od 3 verzija

Advantages

The FIS V Plus injection mortar has numerous system approvals, such as in cracked and non-cracked concrete, masonry and for special applications.
The ETA assessment for a service life of 100 years offers permanent safety for all applications.
The approved use in water-filled drill holes enables a wide range of applications, even under harsh environmental conditions.
FIS VW Plus High Speed has a significantly shorter hardening time than FIS V Plus, which ensures swift work progress even at low temperatures.
The FIS VS Plus Low Speed has an extended processing time that prevents the premature hardening of the mortar at higher temperatures. It is ideally suited to large drill hole depths.
The extensive range of accessories is ideally suited to the FIS V Plus injection mortar family, increases the great flexibility of the system and thus allows for a broad range of applications.

Applications

Steelwork constructions
Timber constructions

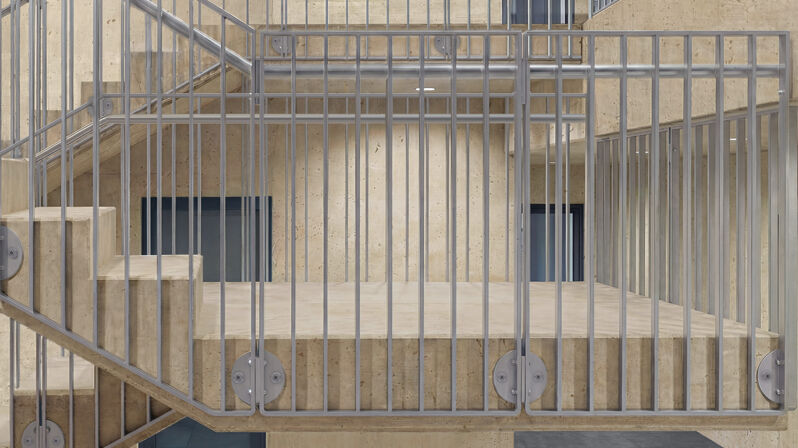

Guard rails
Façades
Staircases
Steel brackets
Machines
Masts
Awnings
Canopies
Gates
Consoles
Pipelines
Gratings
Satellite antennas

Building materials

Approved for anchorings in:

Concrete C20/25 to C50/60, cracked and non-cracked
Hollow blocks made from lightweight concrete
Hollow blocks made from concrete
Vertically perforated brick
Perforated sand-lime brick
Solid sand-lime brick
Aerated concrete
Solid brick

Approved for:

Rebar connections
Remedial wall tie VBS 8
Weather facing reconstruction system FWS II
Stand-off installation TherMax

Primjenjuju se pojedinosti (građevinski materijali, opterećenja itd.) bilo kojeg dostupnog odobrenja. Dodatne dokumente možete pronaći u Download Center.

Atesti

ETA-20/0603
ETA-20/0728
ETA-20/0729
DoP No. 0231
DoP No. 0331
DoP No. 0354
ESR-2786
20046/15515
22044-enshort

Functionality

FIS V Plus is a 2-component injection mortar based on a vinyl ester hybrid concept.
Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the static mixer.
The mortar is extruded bubble free from the drill hole base.
The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole.
The injection cartridges are quick and easy to use with the fischer dispensers.
Partially used cartridges can be reused by changing the static mixer.

Mounting Strip 1 Picture

1 / 9

Mounting Strip 2 Picture

1 / 9

Mounting Strip 3 Picture

1 / 7

Mounting Strip 4 Picture

1 / 5

Mounting Strip 5 Picture

1 / 7

1 / 6

ETA Certification Document

pdf, ETA-20/0603

European Technical Assessment for Injection System fischer FIS V Plus - Bonded anchor for use in concrete

izdato 13. 11. 2020.

DOP - Declaration of Performance

pdf, DoP No. 0231

Declaration of Performance for fischer injection system FIS V Plus (Bonded fastener for use in concrete)

izdato 27. 11. 2020.

ETA Certification Document

pdf, ETA-20/0728

European Technical Assessment for Rebar connection with fischer injection system FIS V Plus - Systems for post-installed rebar connections with mortar

izdato 16. 12. 2022.

DOP - Declaration of Performance

pdf, DoP No. 0331

Declaration of Performance for fischer injection system FIS V Plus (Mortar for post-installed rebar connections)

izdato 02. 01. 2023.

ETA Certification Document

pdf, ETA-20/0729

European Technical Assessment for injection System fischer FIS V Plus for masonry - Metal injection anchors for use in masonry

izdato 03. 02. 2025.

DOP - Declaration of Performance

pdf, DoP No. 0354

Declaration of Performance for fischer injection system FIS V Plus (Metal injection anchors for use in masonry)

izdato 14. 11. 2023.

ICC Certification

pdf, ESR-2786

ICC-ES Evaluation Report

Vrijedi od 01. 04. 2024.
do 30. 04. 2026.

Test report (fire protection)

pdf, 20046/15515

Report on fire evaluation of post installed rebar connections with fischer FIS V Plus / FIS V Plus Low Speed injection system

Test report (fire protection)

pdf, 22044-enshort

Fire resistance of fischer injection system FIS V Plus under fire exposure acc. to DIN EN 1363-1

Safety Data Sheet

pdf,

Safety data sheet for 563282 FIS V Plus 300 T

Safety Data Sheet

pdf,

Safety data sheet for 563282 FIS V Plus 300 T

Safety Data Sheet

pdf,

Safety data sheet for 558765 FIS VW Plus 360 S

Safety Data Sheet

pdf,

Safety data sheet for 558765 FIS VW Plus 360 S

Safety Data Sheet

pdf,

Safety data sheet for 558752 FIS V Plus 360 S

Safety Data Sheet

pdf,

Safety data sheet for 558752 FIS V Plus 360 S

Load Table

pdf,

Injection system FIS V Plus with internal threaded anchor RG M I - Permissible loads of a single anchor in normal concrete of strength class C20/25.

Load Table

pdf,

Injection system FIS V Plus with threaded rod FIS A resp. RG M - Permissible loads of a single anchor in normal concrete of strength class C20/25.

Load Table

pdf,

Injection system FIS V Plus with threaded rod FIS A in solid and perforated masonry - Permissible loads 2) for a single anchor in masonry for pre-positioned installation.

Technical Data Sheet

pdf,

Injection Mortar FIS V Plus 300 T

Technical Data Sheet

pdf,

Injection Mortar FIS VW Plus 360 S / FIS VW Plus 410 C

Technical Data Sheet

pdf,

Injection Mortar FIS V Plus 360 S

Installation Instructions

pdf,

FIS V Plus

Curing Times

pdf,

Curing times for injection mortar FIS VW Plus High Speed / FIS V Plus / FIS VS Plus Low Speed

Marketing Documents

pdf,

FIS V Plus.

Sistemske komponente

DIBt-approval
ETA-approval
Language on label	DE, EN, IT
Scale unit	150
Contents	1 x Cartridge 300 ml 2 x Static mixer FIS MR Plus
Amount	1 pcs.
GTIN (EAN-Code)	4048962452600

DIBt-approval
ETA-approval
Language on label	DE, FR, NL
Scale unit	180
Contents	1 x Cartridge 360 ml 2 x Static mixer FIS MR Plus
Amount	1 pcs.
GTIN (EAN-Code)	4048962417715

DIBt-approval
ETA-approval
Language on label	DE, FR, NL
Scale unit	180
Contents	1 x Cartridge 360 ml 2 x Static mixer FIS MR Plus
Amount	1 pcs.
GTIN (EAN-Code)	4048962417579
